How Supertracker’s Alignment Systems Printouts Can Help You Build Customer Trust

In the fast-paced world of vehicle repair, two things matter most to any workshop’s success: accuracy and efficiency. Every minute a vehicle spends on the ramp needs to count, which means every alignment check must be precise. That’s why investing in an intuitive, easy-to-use alignment system is essential. Supertracker’s alignment systems are just that, supported by a powerful operating system that delivers clear, evidence-based insights, ensuring technicians can work more effectively and providing customers with easy-to-understand results, helping to enhance the customer experience and drive repeat business.

How Printouts Can Build Customer Trust

One of the key features behind Supertracker’s computerised aligners is their comprehensive printout capability.

In the automotive industry, trust is key. When you perform an alignment, it can be difficult for a customer to understand exactly what was wrong and how you fixed it. Supertracker’s detailed printouts bridge the gap by:

1. Providing Evidence: Showing the customer a clear before-and-after report gives them visual proof of the work performed.
2. Demonstrating Value: When customers see the specific metrics of their vehicle’s alignment and the improvements made, they better understand the importance of the service, helping to turn what may have been a simple pre-check into a revenue-making opportunity.
3. Ensuring Transparency: Detailed reports turn a technical service into a clear, understandable value proposition, which ultimately helps you build long-term loyalty with your clients and can help generate repeat business.

The Perks of a Supertracker Printout

The Supertracker printout provides a comprehensive before-and-after comparison, clearly illustrating the specific adjustments made to the vehicle. The report covers essential alignment geometry for all four wheels, providing a full picture of the vehicle’s health, showing:

• Primary Geometry: Toe, Camber, and Caster on both the driver and passenger sides of the vehicle, and on the front and rear wheels.
• Axle Geometry: Thrust line and total rear toe.

This data is presented in a clear, visual format, which can easily be used to help customers understand exactly how alignment has improved their vehicle's handling and safety. This helps to take the guesswork out of alignment and allows you to demonstrate to your customers the professional expertise behind every alignment service, and the direct value it can have on their vehicle, improving fuel consumption and reducing tyre wear.

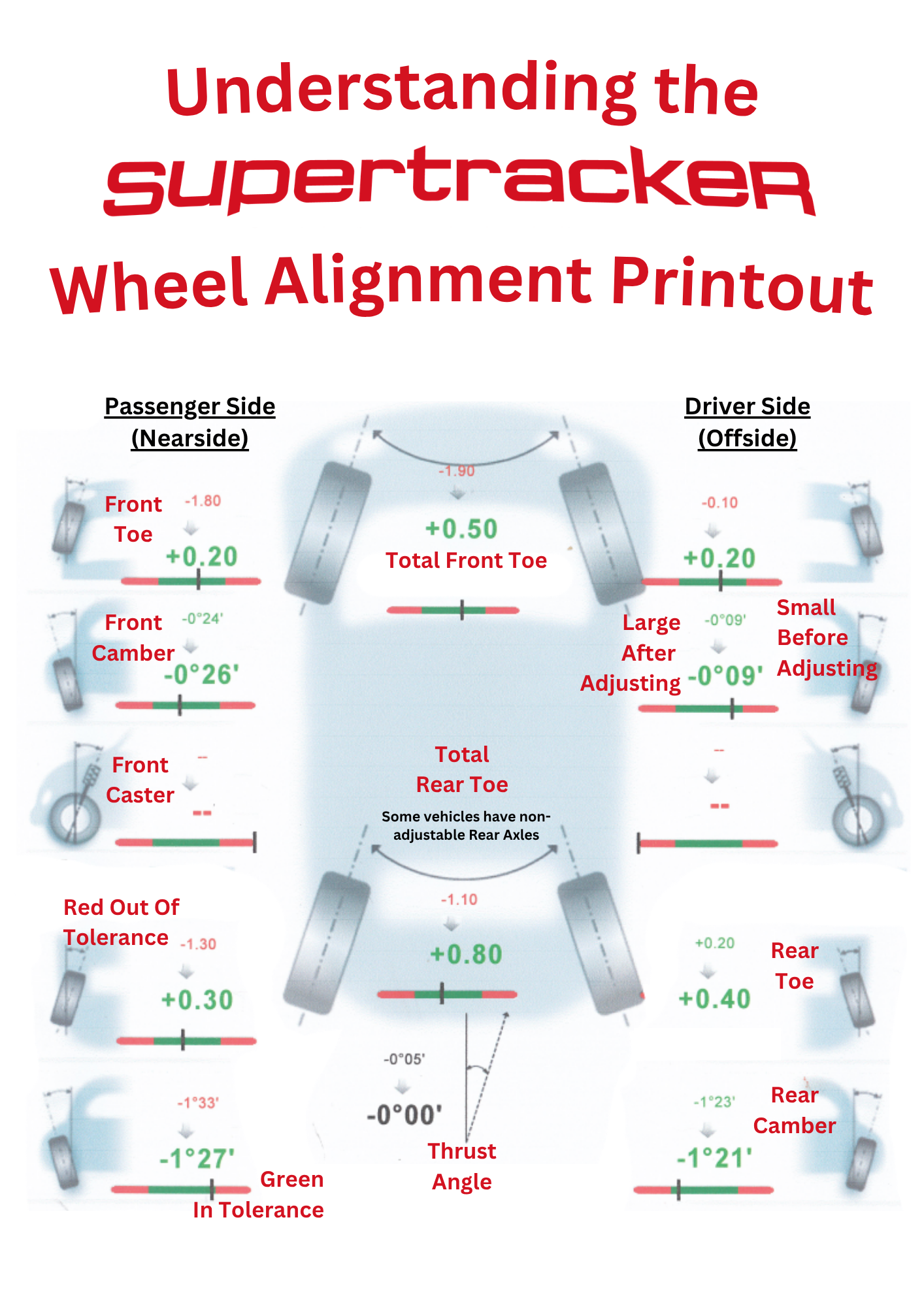

What a Supertracker Printout Shows

A Supertracker printout is divided into several sections to make it easy for both technicians and customers to understand the vehicle’s alignment measurements.

The left-hand column displays measurements for the nearside (passenger side) of the vehicle, whilst the right-hand column shows measurements for the offside (driver’s side). The centre section displays the total toe and thrust angle values.

Measurements are also separated into front and rear-axle readings to provide a complete overview of the vehicle’s four-wheel alignment. On vehicles with a fixed rear axle, rear adjustments may not be possible; in these cases, thrust angle measurements may still appear on the printout for reference only.

Supertracker printouts can be customised to include the customer’s name and vehicle registration, as well as your own company’s name and information as a header. This ensures each report is clearly linked to the correct vehicle and allows the customer to reference back to your company. The type of printout can be cycled through on the system for different, easy-to-understand formats.

Alignment measurements can be displayed in either millimetres or degrees, depending on preference. Results shown in green indicate that measurements are within the manufacturer's tolerance, whilst red values indicate they are outside the recommended specification. The smaller numbers displayed above a measurement show the alignment angle before adjustment, whilst the larger number highlights the alignment angle following adjustment.

The printout provides a complete view of the alignment status of all four wheels on the vehicle.

Understanding the Key Alignment Measurements

Front Caster

Caster refers to the angle at which the steering axis leans toward the rear of the vehicle. It helps create the self-centring action of the steering wheel and contributes to straight-line stability. Tyre design can also influence how the caster affects vehicle handling.

Front Camber

Camber describes how vertically upright the wheel sits when viewed from the front of the vehicle. It affects the tyre’s contact patch, particularly during cornering. In most cases, camber is slightly negative, meaning the top of the wheel leans inward toward the vehicle.

Front Toe

Front toe measures how straight the front wheels point relative to each other. Correct toe settings help minimise tyre wear and improve handling. As wheel position can change under load or downforce, driving style can significantly influence front toe behaviour.

Rear Camber

Rear camber functions in the same way as front camber but is often set with more negative camber to improve rear grip and reduce the likelihood of oversteer. It plays a major role in overall vehicle stability and handling.

Rear Toe

The rear toe also measures wheel direction, but unlike the front wheels, rear wheel angles typically remain more constant during driving. Most vehicles are set with a slight toe-in at the rear to improve straight-line stability and handling balance.

Thrust Angle

Thrust angle measures how square the rear axle is relative to the vehicle’s centreline. An incorrect thrust angle can cause the steering wheel to sit off-centre and may significantly affect vehicle handling, including oversteer or understeer characteristics.

Important Alignment Variables

When it comes to wheel alignment, even a small adjustment, such as 1mm or 0.5°, can have a significant effect on vehicle performance, tyre wear, and handling.

For this reason, we always recommend carrying out an alignment check after any suspension work to ensure all settings remain within specification.

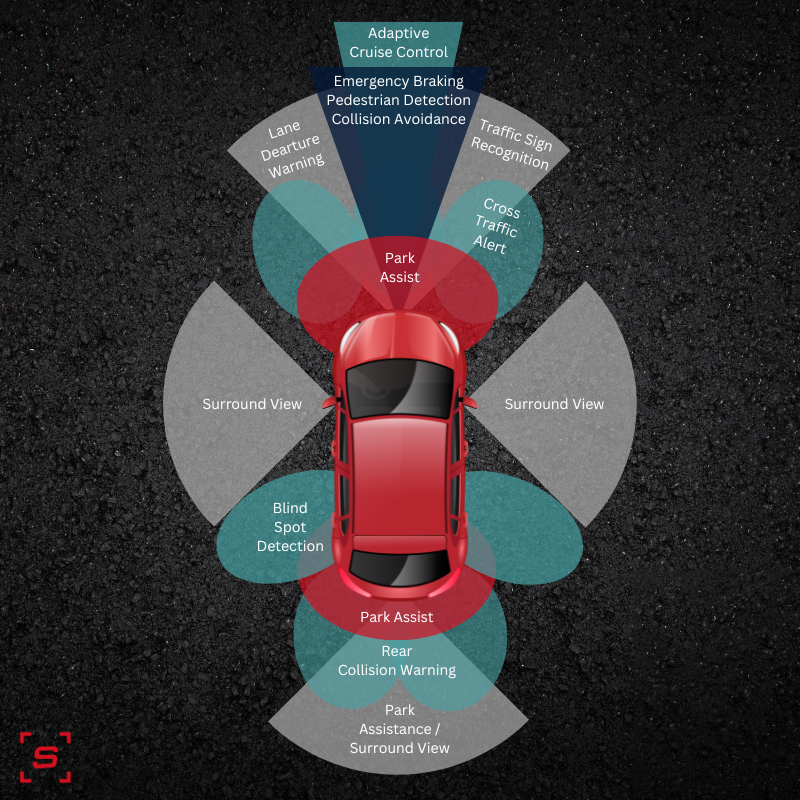

The same applies when performing ADAS (Advanced Driver Assistance Systems) calibration, as incorrect wheel alignment can affect sensor accuracy and compromise system performance and safety.

It is also important to remember that wheel alignment settings are interconnected; adjusting one angle can often influence another, so achieving the correct setup requires a full, balanced approach.

Nationwide Support You Can Count On

At Supertracker, we know that having simple, effective and reliable equipment that engineers understand is key to the success of a business. That’s why when you invest in a Supertracker system, you aren't just buying a machine; you are gaining a partner.

All our customers are backed by a nationwide team of service professionals and qualified engineers, so whether you need routine maintenance or technical guidance, our experts are never far away. This commitment to ongoing support is exactly why so many workshops choose to upgrade to the latest Supertracker models as their businesses grow.

Upgrade Your Alignment Offering with Supertracker

Efficiency, accuracy, and customer satisfaction should all be at the forefront of your workshop's service offering, and with a Supertracker aligner, they can be. Thanks to the Supertracker CCD aligner printout, you can give your customer peace of mind and deliver substantive alignment services your customers will trust.

Contact us to learn more about our latest Supertracker aligner models or to speak with one of our experts today.
