Why the Thrust Angle Is the Foundation for Accurate Wheel Alignment

When approaching a wheel alignment, it’s easy for an engineer or technician to focus primarily on the front half of the vehicle, only checking the toe and camber angles and ensuring the steering is straight. Whilst this approach is not inherently wrong, it does overlook a key starting point for wheel alignment, that can have an impact on the rest of the alignment of the vehicle, that is, the thrust angle, which is measured from the rear axle of the car.

Ignoring the thrust angle can lead to misleading alignment readings, poor handling characteristics, and customer complaints, even when the numbers appear to be correct. So, what exactly is the thrust angle, and why is it so important?

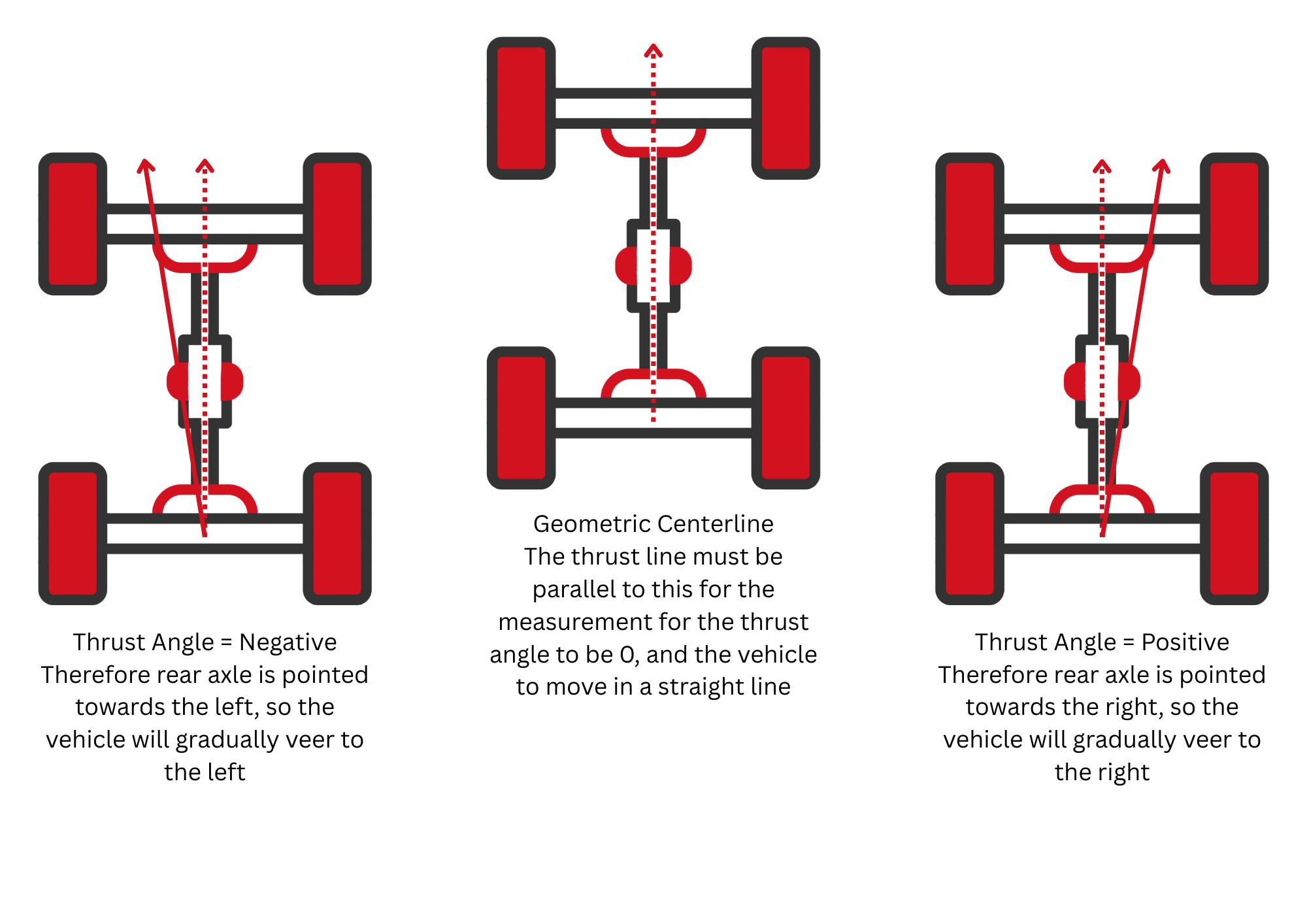

The thrust angle is the angle between the vehicle’s geometric centreline and the direction the rear wheels are actually pushing the car. It describes whether the rear axle is pushing the vehicle straight ahead or slightly off to one side. “Thrust” refers to the forward momentum of the vehicle generated by the driven wheels. If that thrust is applied at an angle, even a small one, the vehicle will naturally try to move in that direction.

To understand the thrust angle, the vehicle’s centreline must first be established. This is an imaginary line that runs down the middle of the car, from front to rear. It represents the ideal straight-ahead direction of travel and acts as the primary reference point for all alignment measurements.

The thrust angle itself is measured between this centreline and the thrust line, which is the direction the rear axle is pointing based on rear wheel toe. If these two lines are parallel, then that makes the thrust angle zero, and means the vehicle is being pushed straight ahead. If they are not parallel, the rear axle is effectively steering the vehicle off course. As the rear wheels, much like the rudder on a boat, determine the true direction of travel, and everything in front must respond to that direction.

The thrust angle is a vital starting point for any wheel alignment, because it dictates what “straight ahead” actually means for the vehicle.

If the thrust angle is not measured and corrected first, then even a perfectly aligned front end can still result in the vehicle crabbing. This is where a vehicle appears to be moving slightly sideways down the road, rather than moving in a straight line.

In a crabbing vehicle:

• The rear axle is pushing the car at an angle
• The front wheels are forced to compensate
• The steering wheel must be held off-centre to keep the vehicle moving straight

For example, if the thrust angle is even slightly negative, it means the vehicle’s rear axle is pointed towards the left. This means the rear wheels are constantly pushing the vehicle leftwards. To correct this, on an adjustable vehicle, adjusting the rear toe will correct the trust line, this is applicable to laser and computerised systems. On a non adjustable vehicle (fixed axis) a computerised aligner will automatically compensate for a trust line, but with a laser system, you will have to check for the trust line before moving to the front and to alter the front toe you will need to compensate for the trust line you have identified.

Why is the Thrust Angle the Best Starting Point for Wheel Alignment?

Wheel alignment is fundamentally a reference-based process, so if the initial reference isn't optimum, everything that follows is also isn't optimum.

If the rear alignment isn’t measured first, the alignment machine has no accurate reference for what “straight ahead” actually is. As a result, front alignment adjustments are made relative to a false reference, which invalidates all subsequent readings.

This is why the thrust angle must be established before moving to the front of the vehicle.

The correct alignment sequence when using a laser wheel alignment system is:

1. Install heads on rear wheels

2. Measure and correct rear toe (and camber if adjustable)

3. Establish thrust line

4. Move to the front wheels

5. Set the front toe relative to the thrust line

The order of this sequence will lead to more accuracy with alignment readings, as if rear alignment and the thrust angle are neglected, then the results can lead to Steering wheel off-centre complaints, vehicle drifting despite correct readings, increased tyre wear and repeat alignments with customers coming back for the same job. In many cases of alignment, the vehicle is not really misaligned from the front, but from the rear, where the issue has been neglected altogether.

Measuring the thrust angle should therefore be the foundation upon which the entire alignment process is built. By addressing the rear axle first and establishing a correct thrust line, engineers can ensure that every adjustment made afterwards is accurate and effective.

How CCD Technology Can Streamline Thrust Angle Measurements

Computerised CCD wheel alignment systems offer a streamlined way of measuring the thrust angle, building on the principles that technicians already use with laser alignment equipment. Whilst traditional laser aligners still remain a proven and effective solution for wheel alignment, providing reliable measurements when used correctly, CCD aligners take this a step further by calculating the thrust angle automatically, helping to make complex measurements quicker and easier to achieve.

By measuring all four wheels simultaneously, a CCD system can establish the geometric centreline of the vehicle before any adjustments are made. Removing much of the interpretation required with manual or laser-based methods, reducing the margin for human error and helping technicians work more efficiently.

For workshops looking to streamline the alignment process, improve repeatability, and take some of the manual calculation out of wheel alignment measurements, upgrading from laser to CCD technology is the logical next step. This is where the Supertracker CCD systems are at their best, designed to make alignment simple, accurate, and efficient. The new COMPACT range is the ideal choice for workshops that want to upgrade from laser alignment but have limited workshop space or tight budgets. The COMPACT systems deliver the benefits of CCD technology iin a manoeuvrable, small-footprint system, offering a practical and affordable step forward without compromising capability. That’s why we’re the home of straightforward wheel alignment.
