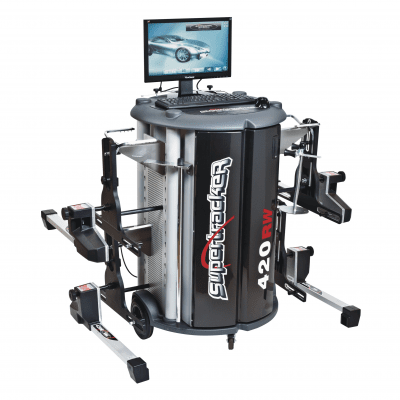

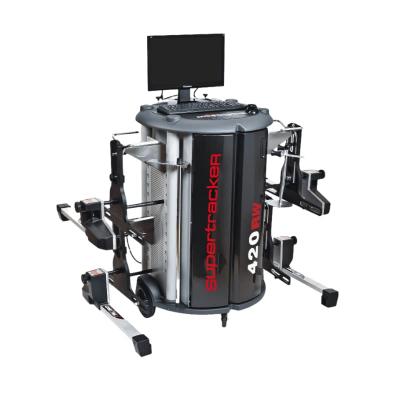

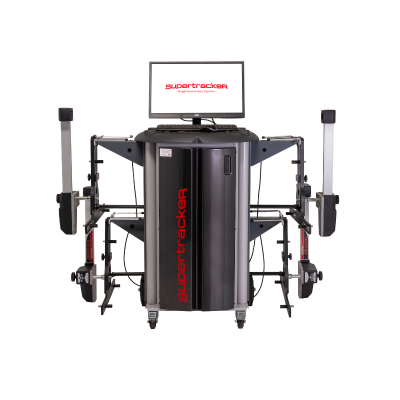

The Supertracker STR420RW 8 Sensor wheel alignment system covers all aspects of adjustability within the modern vehicle chassis. The fast set up speed of the machine will enable you to do a high volume of alignments per day.

Using the upgraded BT2 data transmission process, allows a greater range and faster transmission times over and above Bluetooth. BT2 transmission allows for multiple aligners to be used on the same site and the greater range gives the option to perform quick checks on vehicles virtually anywhere on the workshop floor or even outside.

The 420 aligner is impressively quick, from the initial set up to full alignment readings in a time of 59 seconds. It can be used on a Full wheel alignment lift, Standard Four Post Lift, Platform Scissor Lifts, Pit, level surface or 2 Post Lift using our wheel alignment tables.

Measuring heads

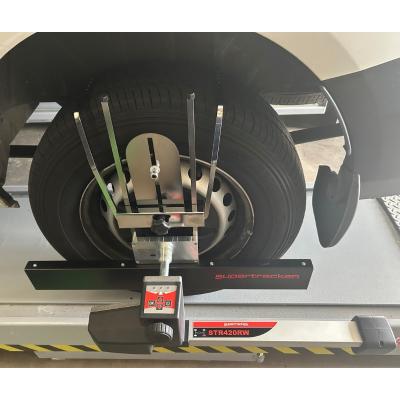

The Supertracker hang on system is a tried and tested method of attaching the measuring heads to wheels. With no clamping or metal contact, the rim buttons cause no damage to alloy or painted wheels. The robust design used with solid state electronics gives durability and works well in a harsh environment. Inbuilt control panels on each head eliminates the need to return to the console through each stage of the alignment process.

The STR420 can also be supplied with 3-Point clamps in addition to or instead of the hangers, providing accurate alignment for lowered vehicles.

Using visual angles of +/- 20 degrees, there is no need of electronic turn plates and measuring accuracy is as low as 0.01mm. Lithium Batteries give extended working life, generating more working time equating to more profit.

Application Program

The user friendly software is designed to make operation easy to navigate and information easy to read. It also features adjustment helps screens to assist technicians on a variety of vehicle adjustments.
As you would expect, an extensive vehicle database with customer history recall is included, with updates released yearly.

The STR420RW also has network capabilities, allowing you to connect to an office or network printer with a choice of printouts and even receive remote access support from the Supertracker factory. Additional monitors can also be installed in waiting areas or receptions for the customer to view.

The STR420RW can be upgraded to include touch screen monitor, low spoiler hangers or 3-Point clamps - contact our teams for more information on 01909 480055

  • Extensive vehicle database
  • Customer database with full history recall
  • Choice of Graphic or Tabular colour printout
  • Adjustment help screens
  • Network Capabilities
  • Additional Customer viewing monitor available
  • Wheel hangers & measuring heads calibrated as a unit
